BSmarter Barcode & Scanner Range

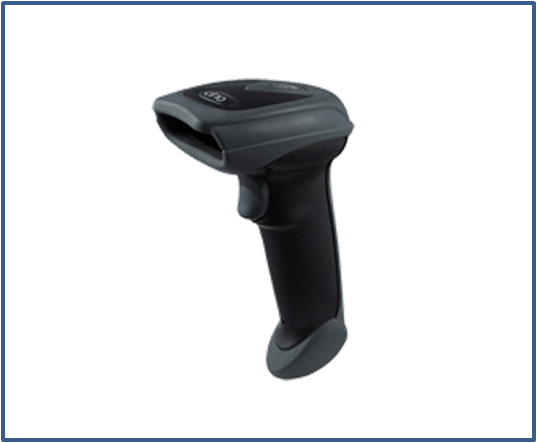

CINO F-780 (Handheld Scanner)
Long Range Linear Imager- Solid State Linear Imager Technology, No moving parts!
- Rugged and compact desi
- Exceptional Read Performance
- Fast Decoding Rate
Read More...
|
Scan Engine |
High Performance Linear Imaging Engine |
|
Light Source |
630 nm visible red LED |
|
Scan Rate |
Dynamic scanning rate up to 500 scans/sec |
|
Working Distance |
More then 40cm on 100% UPC/EAN symbols More then 60cm on 20 mil code 39 |
|
Minimum resolution |
Typical 3 mil (Code 39, PCS 0.9) |
|
Print contrast |
20% minimum reflective difference |
|
Pitch Angle |
+/- 65deg. |
|
Skew Angle |
+/- 65 deg |
|
User Interface |
3 LED's for power, good read and status indications Programmable Beeper |
|
Interfaces |
PS2 Keyboard Wedge or Keyboard direct link |
|
RS-232 (May require external power supply) |
|
|
USB (KBW or COM port emulation) |
|
|
Laser and Wand emulation |
|
|
Symbologies support |
Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked. |
|
Operating Modes |
Toggle, Trigger, Force, Level, Flash, Diagnostic Alternative, Low power, Presentation. |
|
Ambient Light Immunity |
0~100000 Lux |
|
Drop Specification |
Withstands multiple 1.6m drops to concrete |
|
Environmental Sealing |
IP41 |
|
ESD Protection |
Functional after 15kV discharge |
|
Operating Temperature |
-10˚C to 50˚C |
|
Input Voltage |
5VDC ±10% |
|
Power Consumption |
Operating : Typical 180 mA 5VDC |
|
Weight |
157g (excluding the cable) |
|
Dimension (LxWxD) |
97.8 x 70.5 x 156.2mm |
|
Warranty |
2 Year Factory Warranty (not on cable, conditions apply) |

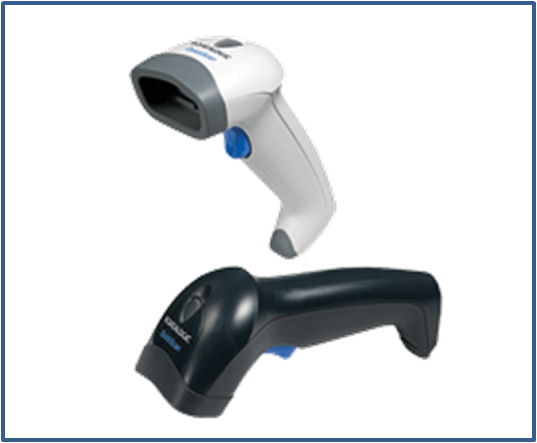

QuickScan® L(Handheld Scanner)
Perfect solution for general purpose users who prefer laser scanning technology- Light Weight Scanner: 128 g
- User Replaceable Scanner Window
- Corded Laser Bar code scanner
- Gun Shaped Ergonomics: Easy to handle and use
Read More...
|
Depth of field |
up to 27cm depending on barcode size |
|
Light source |
650nm Laser Diode |
|
Scan rate |
100 Scan/sec |
|
Min. Resolution |
5 mils |
|
Print Contrast |
30% Minimum reflectance |
|
Laser Safety Class |
Class 2 Laser Product. Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice 50 dated June 24, 2007. IEC/EN60825-1:2007 |
|
Reading indicators |
LED & Beeper |
|
Interface |
PS2 Keyboard wedge, Standard RS-232, USB |
|
Drop resistance |
Withstands drops from 1.5 m / 5 ft to concrete |
|
Water & Dust Resistance |
IP42 |
|
ESD Protection |
20 kV |
|
Symbologies supported |
Interleaved 2/5, Code 39 (and full ASCII, TriOptic), Discrete 2/5, UPC/EAN (with supplementals), UCC/EAN128, Code 128, Code 128 full ASCII, Code 93, CODABAR, Code MSI, Code 11, IATA, GS1 DataBar™ (RSS), Chinese 2 of 5 |
|
Warranty |
3 Year limited Factory Warranty (not on cable) |
|
Dimensions (H x W x L) |
170 x 61 x 70 mm |
|
Weight |
128g |

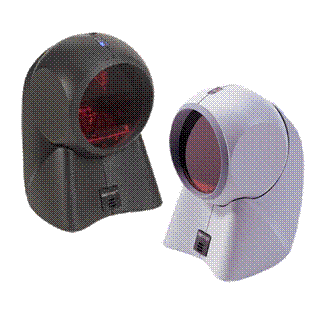

MS7120 Orbit(Stand Scanner)
Designed for applications where counter space is at a premium- User-replaceable, single cable interface to host
- Multiple Beeper tones
- Sunrise 2005 compliant
- Adjustable head
Read More...
|
Scan pattern |
5 fields of 4 Parallel Lines (Omnidirectional) |
|
Scan Speed |
1200 scan Lines per second |
|
Width of Field |
60 mm at face, 105 mm at 216 mm |
|
Depth of Field |
0 ~ 215 mm for 13 mil bar codes |
|
Light Source |
Visible Laser Diode 650 nm +/- 10 nm |
|
Decoding Capability |
Decodes all standard 1D, RSS14, RSS Limited and RSS expanded Barcodes |
|
Communications |
PC Keyboard wedge, RS232, OCIA, Light pen emulation, IBM 468X/469X, Stand Alone Keyboard, USB. |
|
Shock |
Designed to withstand 1.2 m drops |
|
Dimensions (H x D x W) |
15 x 10.5 x 8~10.2 cm |
|
Weight |
410 g |
|
Factory Warranty |
3 years |
|
EMC/Safety Standards |
TUV, UL60950(USA), CISPR22-B, IEC60285-1 Class 1 |
Magellan® 1100i (Stand Scanner)
Datalogic Scanning’s latest digital imaging technology to provide intuitive and fast reading performance on 1D and optional 2D bar codes- Omni-directional Imaging Scanner
- Aggressive performance on 1D and optional 2D codes
- No Moving Parts, improved reliability
- Multi interface support build in
Read More...
|
Scan Pattern |
136 lines |
|
|
Scan Rate |
1768 Digital Scan lines/sec |
|
|
Scan Volume |
178.0 cm3 |
|
|
Pitch |
+/- 65° |
|
|
Yaw |
+/- 75° |
|
|
Ambient Light |
Indoor: < 6,000 Lux |
|
|
Outdoor < 86,100 Lux |
||
|
Maximum Resolution |
5 mils, 0.130mm |
|
|
Depth of Field |
5 mil |
1.3-4.6 cm |
|
7.5 mil |
0.63-5.71 cm |
|
|
10 mil |
0-12.7 cm |
|
|
13 mil UPC |
0-17.7 cm |
|
|
20 mil |
0-17.7 cm |
|
|
Decoding Capability |
Decode all standard 1D codes, GS1 DataBar™ linear codes (Optional : Aztec code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417) |
|
|
Communications |
RS232, USB, IBM USB, Keyboard Wedge, IBM 46XX |
|
|
|
Scanner only |
Scanner with stand |
|
Dimensions L x W x D |
9.4 x 7.1 x 8.4 cm |
9.7 x 7.4 x 14.2 cm |
|
Weight |
198 g |
385 g |
|
Shock |
Multiple 1.2m Drops on Concrete |
|
|
Sealing |
IP52 (Water & Dust Resistant) |
|
|
Warranty |
2 Year limited Factory Warranty (not on cables) |
|
|
Power requirements |
Max. 400 mA |
|
|
Operating Voltages |
4.5V - 14.0 VDC |
|
|
EMC/Safety Standards |
Complies to EU RoHS |
|
